Description
Cisco C9200L-24T-4X-E Switch is Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials
Cisco C9200L-24T-4X-E Switch Product Overview
The switch provides security features that protect the integrity of the hardware as well as the software and all data that flows. It offers resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Cisco C9200L-24T-4X-E gives you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Cisco C9200L-24T-4X-E Switch is the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

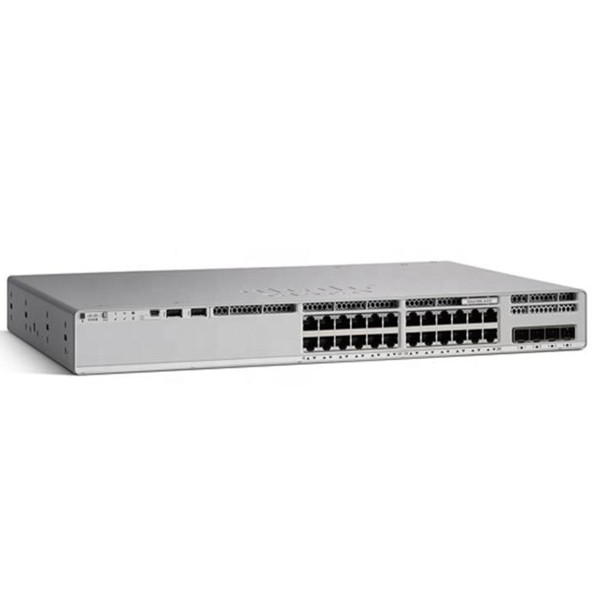

Cisco C9200L-24T-4X-E Switch Product Pictures
Cisco C9200L-24T-4X-E Switch Product Specifications
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports data |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 11.3 in |
| 4.4 x 44.5 x 28.8 cm | |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Mean time between failures (hours) | 525,990 |
Cisco C9200L-24T-4X-E Switch Product Features
- Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- Flexible downlink options with data or PoE+
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with a better cost structure
- Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Cisco C9200L-24T-4X-E Switch and More Models
| C9200L-24T-4G-A | Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Advantage |
| C9200L-24T-4G-E | Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials |
| C9200L-24P-4G-A | Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage |
| C9200L-24P-4G-E | Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials |
| C9200L-48T-4G-A | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage |
| C9200L-24T-4X-A | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage |
| C9200L-24T-4X-E | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials |
| C9200L-24P-4X-A | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage |
| C9200L-24P-4X-E | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials |
| C9200L-48T-4X-A | Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage |
| C9200L-48T-4X-E | Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials |
| C9200L-48P-4X-A | Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage |
| C9200L-48P-4X-E | Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials |
| C9200L-48PL-4X-A | Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Advantage |
| C9200L-48PL-4X-E | Catalyst 9200L 48-port partial PoE+ 4x10G uplink Switch, Network Essentials |
| C9200L-24PXG-4X-E | Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials |
| C9200L-24PXG-4X-A | Catalyst 9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Advantage |
| C9200L-48PXG-4X-E | Catalyst 9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Essentials |
| C9200L-48PXG-4X-A | Catalyst 9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Advantage |
| C9200L-24PXG-2Y-E | Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials |
| C9200L-24PXG-2Y-A | Catalyst 9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Advantage |
| C9200L-48PXG-2Y-E | Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Essentials |
| C9200L-48PXG-2Y-A | Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Advantage |
Cisco C9200L-24T-4X-E Switch Product Applications
