Huawei QSFP-100G-ER4-Lite Module is 100GBase-ER4-Lite Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,30km(FEC OFF),40km(FEC ON),LC)
Huawei QSFP-100G-ER4-Lite Module Product Overview
Huawei QSFP-100G-ER4-Lite Module is used for 100GBASE-ER4 Lite Ethernet and OTN OTU4 links, single-mode fiber can reach 30km (FEC disabled) or 40km (FEC enabled) (SMF). It adopts WDM multiplexing wavelength division technology, the wavelength is 1295.56~1309.14, the package form is QSFP28, and the LC duplex connector is used, and the maximum transmission distance can reach 40KM when used with single-mode fiber. With DDM, it has small size and low power consumption.
This module is widely used in 100GBASE-ER4 Lite Ethernet and OTN OTU4 links, and the transmission distance through single-mode fiber can reach up to 30km (without FEC) or 40km (with FEC on).
Huawei QSFP-100G-ER4-Lite Module converts four 28Gb/s electrical data input channels into 4-channel LAN-WDM optical signals, and then multiplexes them into a single channel for 112Gb/s optical transmission. On the reverse receiver side, the module demultiplexes the 112Gb/s optical input into a 4-channel LAN-WDM optical signal, and then converts it into 4 electronic data output channels. As a member of the LAN-WDM wavelength grid defined in IEEE 802.3ba, the center wavelengths of the 4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm. The high-performance cooling LAN-WDM DFB transmitter and high-sensitivity APD receiver provide excellent performance for 100-Gigabit Ethernet applications. The link can reach 30 kilometers without FEC, and the link with FEC is up to 40km.

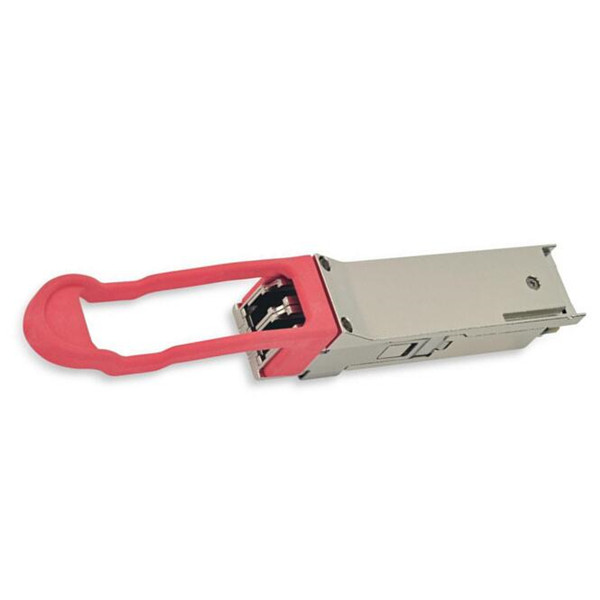

Huawei QSFP-100G-ER4-Lite Module Product Pictures
Huawei QSFP-100G-ER4-Lite Module Product Specifications
| Item | Description |
| Part number | 02311YXR |
| Description | 100GBase-ER4-Lite Optical Transceiver,QSFP28,100G,Single-mode module (1310nm,30km(FEC OFF),40km(FEC ON),LC) |
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Version support | Supported in V200R003C00 and later versions |
| Center wavelength (nm) | 1295, 1300, 1304, 1309 |
| Standards compliance | 100GBASE-ER4 |
| Connector type | LC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 30 km (FEC OFF)/40 km (FEC ON) |
| Transmit power (dBm) | -2.5 to +2.9 |
| Maximum receiver sensitivity (dBm) | -18.4 |
| Overload power (dBm) | -3.5 |
| Extinction ratio (dB) | ≥ 8 |
| Operating temperature | 0°C to 70°C |
| Pack Weight(kg) | 0.061 |
| Pack Volume(m^3) | 0.000026 |
| Pack Dimension(D*W*H mm) | 110*18*12 |
| Net Dimension(D*W*H mm) | 122*18*11 |
| Discount Category | Optical Module |
| Product Line | Enterprise Network |
| Sub Product Family | Core Center |
Huawei QSFP-100G-ER4-Lite Module Product Features
- Use hot-swappable QSFP28 package
- 4-channel full-duplex transceiver module
- 4-channel cooling type LAN-WDM DFB transmitter and APD ROSA
- Built-in CDR circuit in the receiving and transmitting channels
- Comply with QSFP28 MSA, IEEE 802.3ba 100GBASE-ER4 Ethernet and OTN OTU4 standards
- Maximum rate up to 111.8Gbps
- The transmission distance through G.652 single-mode fiber is up to 30km (without FEC) or 40km (with FEC)
- Maximum power consumption is less than 3.8W
- Dual LC optical ports
- Operating temperature range from 0 to 70 degrees Celsius
- Power supply voltage 3.3V
- Comply with RoHS environmental standards (lead-free)
Huawei QSFP-100G-ER4-Lite Module and More Related 100G Modules
| QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver, QSFP+,40G,Multi-mode (850nm,0.15km,MPO) (connecting to one QSFP+ or four SFP+) |
| QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver, QSFP+,40G,Multi-mode (850nm,0.3km,MPO) (connecting to one QSFP+ or four SFP+) |
| QSFP-40G-eSM4 | 40GBase-eSM4 Optical Transceiver, QSFP+, 40G,Single-mode Module (1310nm,10km,MPO) (connecting to one QSFP+ or four SFP+) |
| QSFP-40G-SR-BD | 40GBase-BD Optical Transceiver, QSFP+,40G,Multi-mode (850nm,0.1km,LC) QSFP-40G-SDLC-PAM |
| 40GBase-SDLC | Optical Transceiver, QSFP+,40G,Multi-mode(850nm,PAM4,0.1km- OM3,0.15km-OM4,LC) |
| QSFP-40G-eSDLC-PAM | 40GBase-eSDLC Optical Transceiver, QSFP+,40G,Multi-mode(850nm,PAM4,0.1km- OM3,0.3km-OM4,LC) |
| QSFP-40G-SDLC-PAM-G2 | 40GBase-SDLC Optical Transceiver, QSFP+,40G,Multi-mode(850nm,PAM4- G2,0.1km-OM3,0.15km-OM4,LC) |
| QSFP-40G-eSDLCPAM-G2 | 40GBase-eSDLC Optical Transceiver, QSFP+,40G,Multi-mode(850nm,PAM4- G2,0.1km-OM3,0.3km-OM4,LC) |
| QSFP-40G-LR4-Lite | 40GBase-LR4 Lite Optical Transceiver,QSFP+,40G,Single-mode Module(1310nm,2km,LC) |
| QSFP-40G-LR4 | 40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
| QSFP-40G-ER4 | 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |

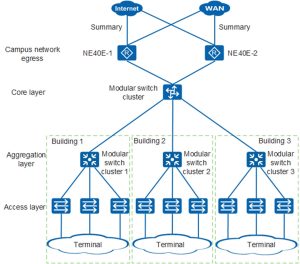

Huawei QSFP-100G-ER4-Lite Module Product Applications
