Description

Huawei S5736-S48S4X-D Switch is the next-generation standard all-optical GE access switch with 48 x GE SFP ports, 4 x 10 GE SFP+ ports and Built-in DC power

Huawei S5736-S48S4X-D Switch Product Overview

The switch is developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network. At the same time, S5736-S48S4X-D supports enhanced Layer 3 features, simplified operation and maintenance (O&M), flexible Ethernet networking and mature IPv6 features. Additionally, S5736-S is hardware ready to support VXLAN and allow centralized and distributed VXLAN gateway deployment modes. These switches also support the BGP EVPN protocol for dynamically establishing VXLAN tunnels and can be configured using NETCONF/YANG. VXLAN is used to construct a Unified Virtual Fabric (UVF). As such, multiple service networks or tenant networks can be deployed on the same physical network, and service and tenant networks are isolated from each other. This capability truly achieves ‘one network for multiple purposes’. The resulting benefits include enabling data transmission of different services or customers, reducing the network construction costs, and improving network resource utilization.

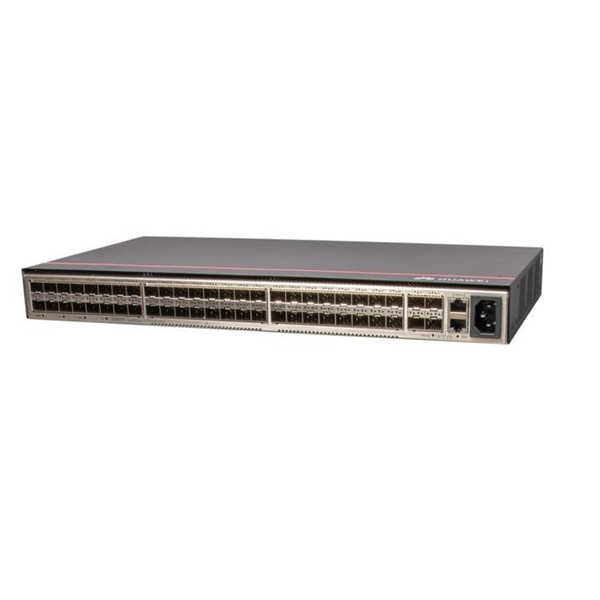

Huawei S5736-S48S4X-D Switch Product Pictures

Huawei S5736-S48S4X-D Switch S5736-S Series All-Optical SwitchesHuawei S5736-S48S4X-D huawei s5636 switch ycict

S5736-S Series All-Optical Switches ycictHuawei S5736-S48S4XC Switch All-Optical Switches ycict

Huawei S5736-S48S4X-D Switch Product Specifications

Model CloudEngine S5736-S48S4X-D
Forwarding Performance 480 mpps
Switching Capacity2 1.04/2.72 Tbit/s
Fixed Ports 48 x GE SFP ports, 4 x 10 GE SFP+ ports
Flexible Upgrade Smooth upgrade of downlink ports from GE to 10 GE based on RTU licenses
MAC Features IEEE 802.1d compliance
Automatic MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4094 VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
Super Virtual Fabric (SVF) Plug-and-play of SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client running
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.2 kg (7.1 lb)
Weight with packaging [kg(lb)] 4.3 kg (9.48 lb)
Typical power consumption [W] 87 W
Typical heat dissipation [BTU/hour] 296.85 BTU/hour
Maximum power consumption [W] 108 W
Maximum heat dissipation [BTU/hour] 368.51 BTU/hour

Huawei S5736-S48S4X-D Switch Product Features

  • Support a broad set of Layer 2/Layer 3 multicast protocols, such as PIM SM, PIM DM, PIM SSM, MLD, and IGMP snooping. This capability is ideal for high-definition video backhaul and video conferencing access.
  • Support MAC address authentication, 802.1X authentication, and Portal authentication, and implements dynamic delivery of policies (VLAN, QoS, and ACL) to users.
  • Sets up and maintains a DHCP snooping binding table, and discards the packets that do not match the table entries. The DHCP snooping trusted port feature ensures that users connect only to the authorized DHCP server.
  • Use the mature, stable VRP platform and supports IPv4/IPv6 dual stack, IPv6 RIPng, and IPv6 over IPv4 tunnels (including manual, 6-to-4, and ISATAP tunnels).
  • Can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4-to-IPv6 transition.

Huawei S5736-S48S4X-D Switch and More Related Models

CloudEngine S5736-S24S4XC

CloudEngine S5736-S48S4XC

CloudEngine S5736-S48S4X-A

CloudEngine S5736-S48S4X-D

CloudEngine S5736-S24UM4XC

Huawei S5736-S48S4X-D Switch Ordering Info

Model Product Description
CloudEngine S5736-S24S4XC 24 x GE SFP ports, 4 x 10 GE SFP+ ports, 1*expansion slot, without power module
CloudEngine S5736-S48S4XC 48 x GE SFP ports, 4 x 10 GE SFP+ port, 1*expansion slot, without power module
CloudEngine S5736-S48S4X-A 48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, AC power supply, front access
CloudEngine S5736-S48S4X-D 48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, DC power supply, front access
PAC150S12-R 150 W AC power module
PDC180S12-CR 180 W DC power module
PAC600S12-CB 600 W AC power module
PAC600S12-DB 600 W AC power module
PAC600S12-EB 600 W AC power module
PDC1000S12-DB 1000 W DC power module
S7X08000 8-port 10GE SFP+ interface card
S7Q02001 2-port 40GE QSFP+ interface card
ES5D21Q02Q00 2-port 40GE QSFP+ interface card
ES5D21Q04Q01 4-port 40GE QSFP+ interface card
L-P1GUPG10GS57S S57-S Series, SFP 1G to 10G Electronic RTU License,Per Device
N1-S57S-M-Lic S57XX-S Series Basic SW,Per Device
N1-S57S-M-SnS1Y S57XX-S Series Basic SW,SnS,Per Device,1Year
N1-S57S-F-Lic N1-CloudCampus,Foundation,S57XX-S Series,Per Device
N1-S57S-F-SnS N1-CloudCampus,Foundation,S57XX-S Series,SnS,Per Device,1Year
N1-S57S-A-Lite-Lic N1-CloudCampus,Advanced,S57XX-S Series,Per Device
N1-S57S-A-LiteSnS N1-CloudCampus,Advanced,S57XX-S Series,SnS,Per Device,1Year
N1-S57S-FToA-Lite-Lic N1-Upgrade-Foundation to Advanced,S57XX-S,Per Device
N1-S57S-FToA-Lite-SnS N1-Upgrade-Foundation to Advanced,S57XX-S,SnS,Per Device,1Year

Huawei S5736-S48S4X-D Switch Product Applications
