Description

Huawei TN55NS3T01 Board is 40Gbit/s Line Service Processing Board(ULH.HFEC.Coherent.Tunable.50GHz.LC) for OSN8800

Huawei TN55NS3T01 Board Product Overview

Huawei TN55NS3T01 Board belongs to the relay type single board, which realizes the relay of one OTU3/OTU3e signal. TN55NS3 adopts coherent receiving technology and is applied to coherent systems. TN54NS3 does not support application to coherent systems.

OptiX OSN 8800 T64/T32/T16 can form a complete OTN end-to-end network, and can also build a WDM network with OptiX BWS 1600G, OptiX OSN 1800, and OptiX OSN 9800. It can also be used with NG-SDH, PTN or data communication equipment Hybrid networking realizes a complete transmission solution.
OptiX OSN8800 is mainly used in national trunk lines, regional/provincial trunk lines, and metropolitan area networks. It features large-capacity OTN dispatching capabilities and integrates ROADM (dynamic optical add/drop multiplexing), Tbit electrical crossover, and 100M to 100G full granular dispatch , Optoelectronic intelligent ASON, 40G/100G transmission, rich management and protection functions, which can build end-to-end OTN/WDM backbone transmission solutions for operators to realize large-capacity dispatch and ultra-wideband intelligent transmission.

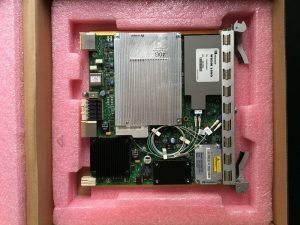

Huawei TN55NS3T01 Board Product Pictures

Huawei TN55NS3T01 Board YCICT Huawei TN55NS3T01 Board PRICE AND SPECS WDM EQUIPMENT OSN 6800 OSN8800Huawei TN55NS3T01 Board YCICT Huawei TN55NS3T01 Board PRICE AND SPECS OSN8800 WDM EQUIPMENT

Huawei TN55NS3T01 Board YCICT Huawei TN55NS3T01 Board PRICE AND SPECS OSN 8800Huawei TN55NS3T01 Board YCICT Huawei TN55NS3T01 Board PRICE AND SPECS OSN8800 40G BOARD

Huawei TN55NS3T01 Board Product Specifications

Brand Huawei
Product Code TN55NS3T01
Part Number 03030NCN-001
Description 40Gbit/s Line Service Processing Board(ULH,HFEC,Coherent,Tunable,50GHz,LC)
Discount Category WDM 40G OTU
Product Line Networking
Sub Product Family WDM
Product Series OptiX OSN 8800
UOM PCS

Huawei TN55NS3T01 Board Product Features

Basic Function Used in the electrical relay station in the system to realize the electrical relay function of the corresponding optical signa
Relay Rate OTU3:OTN Service,Rate 43.02Gbit/s
OTU3e:OTN Service Rate 44.58Gbit/s
OTN Function The WDM side supports OTU3/OTU3e interfaces.
Adopt ITU-T G.709 recommended frame format and overhead processing
OTU3 layer: support SM function
ODU3 layer: Support PM and TCM functions, PM and TCM non-intrusive monitoring functions
WDM Specification Support ITU-T G.694.1 DWDM technical specification.
Wavelength adjustable function Support wavelength tunable optical module. Can achieve:
The wavelength division side optical signal is adjustable within the 40-wave range of 100GHz interval in the C-band.
The wavelength division side optical signal is adjustable within the 80-wave range of the C-band 50GHz interval.
ESC Function Support
Error correction coding TN54NS3:
Support FEC encoding, in line with ITU-T G.709 recommendations.
Support AFEC-2 encoding, in line with ITU-T G.975.1 recommendations.
TN55NS3/TN56NS3:
Support HFEC encoding.
Boards with different error correction codes cannot be connected.
Performance monitoring and alarm monitoring Provide BIP8 byte monitoring (Poisson mode or burst mode) to locate line faults.
Provides the following monitoring functions: laser bias current monitoring, laser working temperature monitoring, optical power monitoring, etc.
Support OTN performance monitoring and alarm monitoring functions.
Only TN54NS3 supports Poisson mode.

Huawei TN55NS3T01 Board and More Related Boards

Product Code TN55NS3T01 TN58NS4T51 TN58NS4T61
Part Number 03030NCN-001 03031EQH 03031GGX
Description 40Gbit/s Line Service Processing Board(ULH,HFEC, 100Gbit/s Line Service Processing Board(SLH,SDFEC2, 100Gbit/s Line Service Processing Board(ULH,SDFEC2,wDCM,
Coherent,Tunable,50GHz,LC) Coherent,Tunable,50GHz,LC) Coherent,Tunable,50GHz,LC)

Huawei TN55NS3T01 Board Product Applications

Huawei TN55NS3T01 Board YCICT Huawei TN55NS3T01 Board PRICE AND SPECS OSN6800 WDM EQUIPMENT
