Description

Huawei TN58NS4T61 Board is 100Gbit/s Line Service Processing Board(ULH,SDFEC2,wDCM, Coherent,Tunable,50GHz,LC)

Huawei TN58NS4T61 Board Product Overview

Huawei TN58NS4T61 Board realizes the relay of 1 optical signal, and the wavelengths of both ends of the transceiver are OTU4 optical signals that comply with the DWDM standard wavelength recommended by ITU-T G.694.1. The optical receiving module receives the optical signal to be relayed through the “IN” optical port and completes the O/E conversion. The electrical relay module performs signal decoding, overhead processing, and encoding. In this process, the electrical signal-based shaping, regeneration, and retiming are completed and packaged into the OTN frame signal format. The coded signal is sent to the optical transmitting module, and after E/O conversion, the OTU4 optical signal of the DWDM standard wavelength conforming to the ITU-T G.694.1 recommendation is sent. The converted optical signal is output from the “OUT” optical port.

Board FEC Code
TN54NS4 HFEC/HFEC2/SDFEC
TN56NS4 SDFEC
TN57NS4 SDFEC2/HFEC
TN58NS4 SDFEC2/HFEC PLUS

Huawei TN58NS4T61 Board can be created as “57NS4” on the network management system and replace TN57NS4. No software upgrade is required for replacement. TN58NS4 occupies 1 physical slot, TN57NS4 occupies 2 physical slots. When TN58NS4 replaces TN57NS4, it needs to be inserted in the right slot of the original TN57NS4 slot. No more single board can be inserted in the free physical slot. The replaced single board only has the function of TN57NS4.
It can be replaced only when both the sending and receiving boards adopt SDFEC2 encoding and the board types are the same.

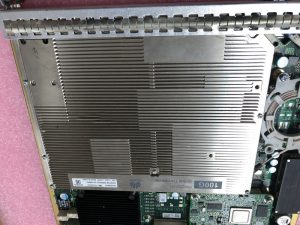

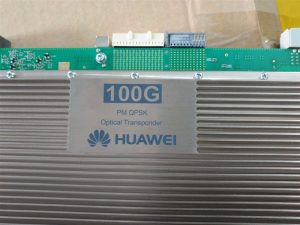

Huawei TN58NS4T61 Board Product Pictures

Huawei TN58NS4T61 Board YCICT Huawei TN58NS4T61 Board PRICE AND SPECS WDM EQUIPMENTHuawei TN58NS4T61 Board YCICT Huawei TN58NS4T61 Board Product Picture PRICE AND SPECS OSN6800 OSN8800

Huawei TN58NS4T61 Board YCICT Huawei TN58NS4T61 Board Product Picture PRICE AND SPECS NEW AND ORIGINALHuawei TN58NS4T61 Board YCICT Huawei TN58NS4T61 Board PRICE AND SPECS NEW AND ORIGINAL

Huawei TN58NS4T61 Board Product Specifications

Part Number 03031GGX
Model TN58NS4T61
Description  100Gbit/s Line Service Processing Board(ULH,SDFEC2,wDCM, Coherent,Tunable,50GHz,LC)
Discount Category WDM 100G OTU
Product Line Networking
Sub Product Family WDM
Product Series OptiX OSN 8800
UOM PCS
Net Dimension(D*W*H mm) 264*25*220
Typic Power(W) 94

Huawei TN58NS4T61 Board Product Features

  • TN54NS4/TN57NS4/TN58NS4:
    In the OptiX OSN 8800 T64 enhanced subrack/OptiX OSN 8800 T32 enhanced subrack/OptiX OSN 8800 T16 subrack,
  • NS4 board supports line mode and relay mode. When working in line mode, the OptiX OSN 8800 T64 enhanced subrack must be configured with the USXH+UXCT single board; the OptiX OSN 8800 T32 enhanced subrack must be configured with the UXCH/UXCM single board; the OptiX OSN 8800 T16 subrack must be configured with the TN16UXCM single board.
    In the OptiX OSN 8800 T64 universal subrack/OptiX OSN 8800 T32 universal subrack/OptiX OSN 8800 universal platform subrack, the NS4 board only supports the relay mode.
    TN56NS4:
    In the OptiX OSN 8800 T64 enhanced subrack/OptiX OSN 8800 T32 enhanced subrack/OptiX OSN 8800 T32 universal subrack/OptiX OSN8800 T16 subrack,
  • NS4 board supports line mode and relay mode. When working in line mode, OptiX OSN 8800 T64 enhanced subrack must be configured with USXH+UXCT single board; OptiX OSN 8800 T32 enhanced subrack/OptiX OSN 8800 T32 universal subrack must be configured with UXCH/UXCM single board; OptiX OSN 8800 T16 subrack The TN16UXCM board must be configured.
    Only when the “OptiX OSN 8800 T32 universal subrack supports 100G line board capability license” is configured, TN56NS4 supports the line mode on the OptiX OSN 8800 T32 universal subrack.
  • In the OptiX OSN 8800 T64 universal subrack/OptiX OSN 8800 universal platform subrack, the NS4 board only supports the relay mode.

Huawei TN58NS4T61 Board Product and More Related Boards

Product Code TN55NS3T01 TN58NS4T51 TN58NS4T61
Part Number 03030NCN-001 03031EQH 03031GGX
Description 40Gbit/s Line Service Processing Board(ULH,HFEC,

Coherent,Tunable,50GHz,LC)

100Gbit/s Line Service Processing Board(SLH,SDFEC2,

Coherent,Tunable,50GHz,LC)

100Gbit/s Line Service Processing Board(ULH,SDFEC2,wDCM,

Coherent,Tunable,50GHz,LC)

Type FEC Code WDM side fixed optical module
T31 SDFEC2 C band-tunable wavelength -ePDM-QPSK(SDFEC2,wDCM-Enhanced)-PIN
T41 HFEC PLUS C band-tunable wavelength-ePDM-QPSK(HFEC PLUS)-PIN
T51 SDFEC2 C band-tunable wavelength-ePDM-QPSK(SDFEC2)-PIN
T61 SDFEC2 C band-tunable wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN
T62 SDFEC2 C band-tunable wavelength-ePDM-QPSK(SDFEC2,wDCM,LH)-PIN
T65 SDFEC2 C band-tunable wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN

Huawei TN58NS4T61 Board Product Applications

Huawei TN58NS4T61 Board YCICT Huawei TN58NS4T61 Board PRICE AND SPECS OSN6800 OSN8800 WDM
