Description
ZXHN F670L V9.0 FTTH is an optical terminal unit wih 4*GE+1*POTS+2*USB+2.4G/5G WIFI, 4*5dBi antennas
ZXHN F670L V9.0 FTTH Product Overview
ZXHN F670L V9.0 FTTH is an AC1200 dual band Gigabit Premium triple-play GPON gateway. It comes with 4GE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance

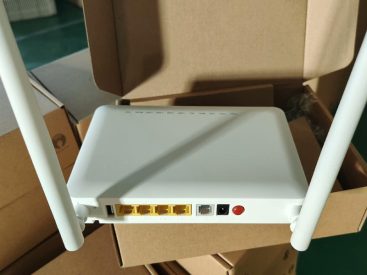

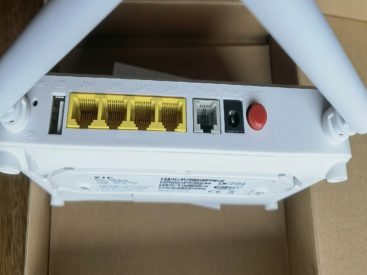

ZXHN F670L V9.0 FTTH Product Product Pictures
ZXHN F670L V9.0 FTTH Product Specifications
| Item | F670L V9.0 |
| Pon Type | GPON |
| Connector | SC/UPC |
| Ports | 4*GE+1*POTS+2*USB+2.4G/5G WIFI 5dBi |
| Working environment | Operating temperature: 0ºC to 40ºC Environment humidity: 5% to 95% |
| System power supply | 12 V DC, 1.5 A |
| Dimensions (length x width x height) | 245mm x 215mm x 40mm |
| Weight | About 0.5kg |
| LEDs | Power, PON, LOS, WPS, LAN1, LAN2, LAN3, LAN4, TEL, WLAN, USB |
| Antenna | 4* 5dBi External antennas |
| Interface | 4*RJ-45 ports for GE 1*SC/UPC connector for GPON interface 1*RJ11 ports for VoIP |
| Buttons | Power On/Off WPS Reset Wi-Fi |
| WiFi | Frequency: 2.4 GHz, 5GHz IEEE 802.11a/n/ac Wi-Fi @ 5GHz(2×2) IEEE 802.11b/g/n Wi-Fi @ 2.4GHz(2×2) WPA/WPA2 Security Up to four broadcast/hidden SSIDs for each band |
ZXHN F670L V9.0 FTTH Product Features
- F670L V9.0 supports 802.11b/g/n Wi-Fi @2.4GHz(2×2) and 802.11a/n/ac Wi-Fi @5GHz(2×2) in Dual-Band concurrent Wi-Fi mode so that its Wi-Fi speed can reach up to 1.2Gbps, consisting of 300Mbps (802.11n 2×2 @ 2.4GHz) and 866Mbps (802.11ac 2×2 @5GHz).
- With support for lPv4/IPv6 Dual Stack, F67OL V9.0 helps operators and end users to achieve future-proof network with smooth evolution.
- The dual image ensures uninterrupted services during software download or upgrade, thereby enhancing software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the POTS port, and 1.5 kV for the Ethernet ports.
- QoS features of the F67OL V9.0 enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and VoIP freely based on their individual service plans. So, service providers could deliver reaI multi-play applications to users and increase network efficiency.
- F67OL V9.0 can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plusTR-069 complying with BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.
ZXHN F670L V9.0 FTTH Product and More Models
F601 GPON ONT, 1 LAN English Firmware
F612 GPON ONT, 2 L AN+VOICE English Firmware SIP
F600 GPON ONT, 4 L AN English Firmware
F620 GPON ONT, 4 L AN+2VOICE English Firmware SIP
F620G GPON ONT, 4 GE+2VOICE English Firmware SIP
F660 V6.0 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB English Firmware SIP
F660 GPON ONT, 4 GE+2VOlCE+WlFI+USB English Firmware SIP
F660 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB English Firmware SIP
F625 GPON ONT, 4 LAN+2VOICE+RF(CATV) English Firmware SIP
F668 GPON ONT, 4 L AN+2VOICE+RF(CATV) +WlFI English Firmware SIP
ZTE ZXHN F663NV3a FTTH 1GE+3FE LAN port + 2.4G WIFI English Firmware
ZTE ZXHN F663NV9 FTTH 2GE+2FE LAN port + 2.4G WIFI English Firmware
F670L GPON ONU 4GE+1tel +USB+WIFI dual band ac wifi 2.4G &5G
F680 GPON ONU GPON 4GE+1TEL+2.4G&5.0G WIFI+2USB
ZXHN F670L V9.0 FTTH Product Applications
