Description
DAC QSFP-4SFP10G-CU5M is QSFP+,4SFP+10G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.4B(S),4*SFP+20M,Used indoor
DAC QSFP-4SFP10G-CU5M Product Overview
QSFP+ to 4 x SFP+ passive copper cables are 40Gb/s to 10Gb/s cable assemblies. The cables are compliant with SFF-8431 and SFF-8436 specifications and provide connectivity between devices using QSFP+ port on one end and multiple SFP+ ports on the other end. Each QSFP+ to SFP+ cable features a single QSFP+ connector (SFF-8436) rated for 40-Gb/s on one end and 4 SFP+ connectors (SFF- 8431), each rated for 10-Gb/s, on the other. The cables use state-of-the-art signal processing technology to fill the expanding need for cost effective data center inter connects.

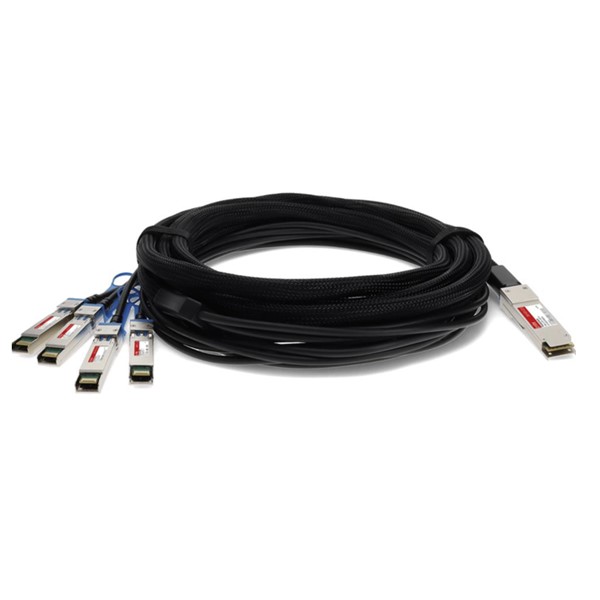

DAC QSFP-4SFP10G-CU5M Product Pictures
DAC QSFP-4SFP10G-CU5M Product Specifications
| tem | Details |
| Part Number | 02310MUM |
| Model | QSFP-4SFP10G-CU5M |
| Description | QSFP+,4SFP+10G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.4B(S),4*SFP+20M,Used indoor |
| Connector X1 | QSFP+ |
| Connector X2 | 4*SFP+ |
| Cable length [m(ft.)] | 5 m (16.40 ft.) |
| Electrical attribute | Passive |
| Bend radius [mm (in.)] | 30 mm (1.18 in.) |
| Minimum Clearance for Cable Routing [mm (in.)] | QSFP+ end: 100 mm (3.94 in.) |
| SFP+ end: 60 mm (2.36 in.) |
DAC QSFP-4SFP10G-CU5M Product Features
- Compliant with SFF- 8436, SFF-8431, SFF-8432 and SFF-8472
- Connector 1: QSFP+ 40GBASE Rated Connector (SFF-8436 Compliant)
- Connector 2: 4 x SFP+ 10GBASE Rated Connector (SFF-8431 Compliant)
- Up to 10. 3125Gbps data rate per channel
- Up to 7m transmission
- Single 3.3V power supply
- RoHS compliant
- Commercial temperature range (COM): 0~ 70 °C
- Fully compliant to the latest SFP+ & QSFP MSA
- 10G/40 Gigabit Ethernet
- Switches, Routers, and HBAs
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- Enterprise & Data Center Networking & Storage
DAC QSFP-4SFP10G-CU5M and More DAC Cables
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 1/2-meter, passive QSFP-4SFP10-CU0-5
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 1-meter, passive QSFP-4SFP10G-CU1M
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 2-meter, passive QSFP-4SFP10G-CU2M
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 3-meter, passive QSFP-4SFP10G-CU3M
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 4-meter, passive QSFP-4SFP10G-CU4M
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 5-meter, passive QSFP-4SFP10G-CU5M
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 7-meter, active QSFP-4X10G-AC7M
40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ direct-attach breakout cable, 10-meter, active QSFP-4X10G-AC10M
DAC QSFP-4SFP10G-CU5M Product Applications
