Description
DAC QSFP-4SFP25G-CU1M is 100GE QSFP28-4SFP25G,High Speed Direct-attach Cables,1m,(QSFP28),(4*(CC2P0.254B(S))),(4SFP28)
DAC QSFP-4SFP25G-CU1M Product Overview
100G QSFP28 to 4x25G SFP28 DAC breakout high-speed cable is the ideal solution for short-distance transmission (up to 5m) in 100G to 25G Ethernet applications, supporting 4 channels of bidirectional transmission to meet the expanding demand for cost-effective data center interconnects.
These breakout cables connect to a 100G QSFP port of a switch on one end and to four 25G SFP ports of a switch/server on the other end. We currently offer passive cables in lengths of x=1, 1.5, 2, 2.5, 3 and 5 meters.

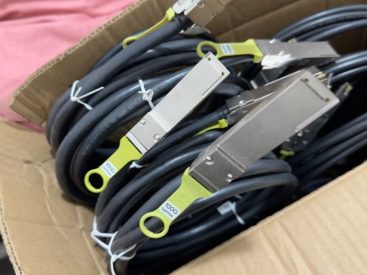

DAC QSFP-4SFP25G-CU1M Product Pictures
DAC QSFP-4SFP25G-CU1M Product Specifications
| Item | Details |
| Part Number | 02311MNX |
| Model | QSFP-4SFP25G-CU1M |
| Description | 100GE QSFP28-4SFP25G,High Speed Direct-attach Cables,1m,(QSFP28),(4*(CC2P0.254B(S))),(4SFP28) |
| Connector X1 | QSFP28 |
| Connector X2 | 4*SFP28 |
| Cable length [m(ft.)] | 1 m (3.28 ft.) |
| Electrical attribute | Passive |
| Bend radius [mm (in.)] | 35 mm (1.38 in.) |
| Minimum Clearance for Cable Routing [mm (in.)] | QSFP28 end: 100 mm (3.94 in.) |
| SFP28 end: 70 mm (2.76 in.) |
DAC QSFP-4SFP25G-CU1M Product Features
- Available in hot-swappable QSFP28/SFP28 packages
- Four-channel NRZ modulation
- Compliant with SFF-8402, SFF-8665 and 100G/25G Ethernet standards
- RoHS compliant (lead-free)
- The power supply voltage is 3.3V
- Enhanced EMI/EMC performance
- I2C management interface
