Description

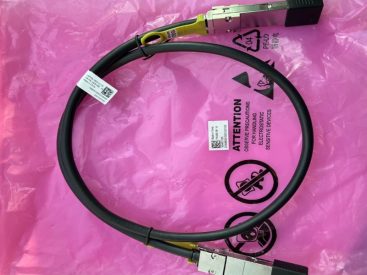

DAC QSFP28-100G-CU3M is an ideal solution for short-distance transmission (up to 5m) between data center racks due to its low power consumption and low latency, and can effectively save costs compared to a combination of modules and patch cords.
DAC QSFP28-100G-CU3M Product Overview
It is a high performance, cost effective I/O solution for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 100 Gigabit Ethernet and temperature requirements for performance and reliability. The cables are compliant with SFF-8436 specifications and provide connectivity between devices using QSFP ports.
Direct attach copper cable, short for DAC cable, is a kind of fixed high speed copper cable assembly. It consists of shielded twinax copper cable with pluggble connectors on either end with varying gauges from 24 to 30AWG: The longer the distance, the higher the AWG rating should be. It can be used to connect switches to routers or servers for short transmission distance. Additionally, DAC cables are commonly available in several different categories: SFP+ DAC, XFP DAC, QSFP DAC and so on.
DAC QSFP28-100G-CU3M Product Specifications
DAC QSFP28-100G-CU3M Product Specifications
| Item | Details |
| Part Number | 02311KNX |
| Model | QSFP28-100G-CU3M |
| Description | QSFP28,100G,High Speed Direct-attach Cables,3m,(QSFP28),CC8P0.254B(S),QSFP28,Used indoor |
| Connector X1 | QSFP28 |
| Connector X2 | QSFP28 |
| Cable length [m(ft.)] | 3 m (9.84 ft.) |
| Electrical attribute | Passive |
| Bend radius [mm (in.)] | 70 mm (2.76 in.) |
| Minimum Clearance for Cable Routing [mm (in.)] | 90 mm (3.54 in.) |
DAC QSFP28-100G-CU3M Product Features
- QSFP28 conforms to the Small Form Factor SFF8636
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support data rates : 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
- IEEE 802.3bj 100GEBASE-CR4 • Copper link x (x=1m, 2m, 3m, 5m)
- Power Supply :+3.3V
- Low crosstalk
- Compatible to QSFP28 MSA
- RoHS Compliant
- 100 Gigabit Ethernet
- Fiber Channel over Ethernet
- Compliant with SFF-8636
- Compliant with IEEE 802.3bj
- BER better than 10-15
- RoHS Compliance
DAC QSFP28-100G-CU3M and More Related Models
SFP+ to SFP+ High-Speed Cable
SFP28 to SFP28 High-Speed Cable
QSFP+ to QSFP+ High-Speed Cable
QSFP+ to 4*SFP+ High-Speed Cable
QSFP28 to QSFP28 High-Speed Cable
QSFP28 to 4*SFP28 High-Speed Cable
QSFP-DD to QSFP-DD High-Speed Cable
QSFP-DD to 2*QSFP56 High-Speed Cable
DAC QSFP28-100G-CU3M Product Applications
