Description

H2-2 FTTH is GPON Optical Network Terminal with 4*GE+1*POTS+2*USB+2.4G/5G WIFI 5dBi

H2-2 FTTH Product Overview

H2-2 is a dual-band Gigabit Premium triple-play GPON gateway. The product comes with 4GE LAN ports, one phone port, and next-generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance. In addition, the model supports OMCI function and ENG firmware, ENG indicators, ENG interface description

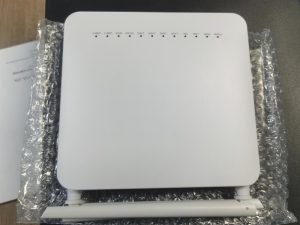

H2-2 FTTH Product Pictures

H2-2 FTTH price and specs ycictH2-2 FTTH spcs good price ycict

ZTE H2-2 ONT price and specs dual band 4ge 1pots and 1usb ycictH2-2 FTTH specs ycict

H2-2 FTTH Product Specifications

Model H2-2
PON type XPON ONT
Port 4GE+1pots+1USB+WIFI 2.4G &5G
Interface quantity 1port
Interface type SC/UPC
Standard XPON: ITU-T G.984
Transmission rate Uplink 1.25G; Down link 2.5G
Wavelength Uplink:1310nm; Downlink:1490nm
Interface type RJ45
Standard IEEE 802.3
Transmission rate 1000Mbps
Standard ITU-T H.248
Transfer Protoco SIP and H.248

H2-2 FTTH Product Features

  • The ONT supports 802.11b/g/n Wi-Fi@2.4GHz(2×2) and 802.11a/n/ac Wi-Fi@5GHz(2×2) in Dual-Band concurrent Wi-Fi mode so that its Wi-Fi speed can reach up to 1.2Gbps, consisting of 300Mbps (802.11n 2×2 @ 2.4GHz) and 866Mbps (802.11ac 2×2 @5GHz).
  • With support for IPv4/IPv6/IPv6 Dual Stack, it helps operators and end users to achieve future-proof network with smooth evolution.
  • The dual image ensures uninterrupted during software download or upgrade, thereby enhancing software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4KV for the adapter, 1.5KV for the POTS port, and 1.5KV for the Ethernet ports.
  • The QoS features enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and VoIP freely based on their individual service plans. So, service providers could deliver real multi-play applications to users and increase network efficiency.
  • The ONT can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plus TR-069 complying with BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.

H2-2 FTTH and More Related Models

ZTE EPON ONT

F401  EPON ONT, 1 LAN English Firmware

F411  EPON ONT, 1 L AN+ 1*VOICE English Firmware SIP

F412  EPON ONT, 2 LAN+VOICE English Firmware SIPF

F420  EPON ONT, 4 LAN+ 2VOICE English Firmware SIP

F460  EPON ONT, 4 L AN+ 2VOICE+WIFI English Firmware SIP

F427  EPON ONT, 4 L AN+ 2VOICE +WlFI English Firmware SIPZTE GPON ONT

ZTE GPON ONT

F601  GPON ONT, 1 LAN English Firmware

F612  GPON ONT, 2 L AN+VOICE English Firmware SIP

F600  GPON ONT, 4 L AN English Firmware

F620  GPON ONT, 4 L AN+2VOICE English Firmware SIP

F620G  GPON ONT, 4 GE+2VOICE English Firmware SIP

F660  GPON ONT, 4 L AN+ 2VOICE+WlFI+USB English Firmware SIP

F660 V5.2  GPON ONT, 4 GE+2VOlCE+WlFI+USB English Firmware SIP

F660  V6.0 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB English Firmware SIP

F625  GPON ONT, 4 LAN+2VOICE+RF(CATV) English Firmware SIP

F668  GPON ONT, 4 L AN+2VOICE+RF(CATV) +WlFI English Firmware SIP

H2-2 FTTH 4*GE+1*POTS+2*USB+2.4G/5G WIFI 5dBi

H2-2 FTTH Product Applications
