Description

Huawei AirEngine 5761-11 is is an indoor access point with Wi-Fi 6 (802.11ax) simultaneously offering services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, and achieving a device rate of up to 1.775 Gbps.

Huawei AirEngine 5761-11 Product Overview

This access point provide services simultaneously on both the 2.4 GHz and 5 GHz bands at a rate of up to 575Mbps at 2.4 GHz (2×2), 1.2 Gbps at 5 GHz (2×2), and 1.775Gbps for the device. At the same time, built-in smart antennas enable always-on Wi-Fi signals for users, significantly enhancing users’ wireless experiences. AirEngine 5761-11 supports high bandwidth and high concurrency with a compact size, facilitating flexible deployment and saving customers’ investment. Moreover, it can analyze the spectrum of non-Wi-Fi interference sources and identify them, including baby monitors, Bluetooth devices, digital cordless phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4 GHz and 5 GHz frequency bands), wireless game controllers, and microwave ovens. Coupled with Huawei NCE-Campus, the precise locations of the interference sources can be detected, and the spectrum of them displayed, enabling the administrator to remove the interference in a timely manner. These strengths make AirEngine 5761-11 ideal for scenarios requiring high bandwidth and high-quality network experience, such as small and midsize enterprise offices, hospital, cafes.

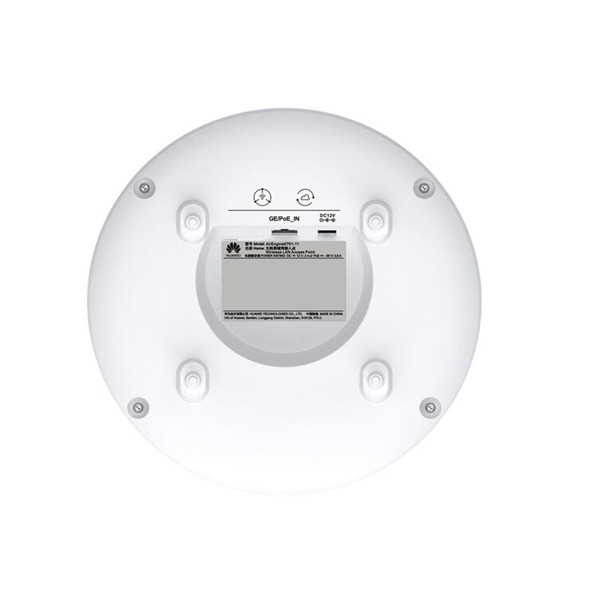

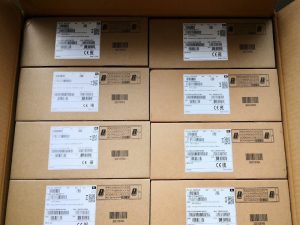

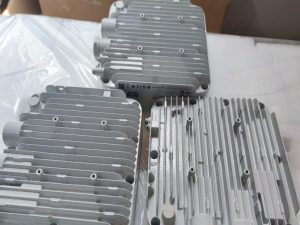

Huawei AirEngine 5761-11 Product Pictures

Huawei AirEngine 5761-11 price and specs ycictHuawei AirEngine 5761-11 huawei access point ycict

Huawei AirEngine 5761-11 huawei 5700 access point ycictHuawei AirEngine 5761-11 huawei ac price and specs ycict

Huawei AirEngine 5761-11 Product Specifications

Model AirEngine 5761-11
Part Number 02353VUR
Description AirEngine5761-11(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
First supported version V200R020C10
Dimensions (Diameter x Height) Φ220 x 50 mm
Power Input DC: 12 V ±10%
PoE power supply: In compliance with 802.3at/af.
Maximum Power Consumption 15.3 W (excluding USB)
Maximum Number of Users ≤ 1024
Operating Temperature –10°C to +50°C
Antenna Type Built-in Smart Antennas
MIMO:Spatial Streams 2.4 GHz: 2×2:2; 5 GHz: 2×2:2
Radio Protocols 802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate 1.775 Gbit/s
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa – 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2

Huawei AirEngine 5761-11 Product Features

  • 1 x GE electrical port
  • Support built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
  • USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
  • Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP
  • MU-MIMO on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
  • New Wi-Fi 6 technologies such as 1024QAM modulation, more subcarriers, and more efficient Symbol scheduling enable the 2.4 GHz radio rate to reach 0.575 Gbps, the 5 GHz radio rate to reach 1.2 Gbps, and the device rate to reach 1.775 Gbps.

Huawei AirEngine 5761-11 and More Models

AirEngine 5760-51
AirEngine 5761-21
AirEngine 5761-12
AirEngine 5761-11
AirEngine 5762-12
AirEngine 5762-10
AirEngine 5761-12W
AirEngine 5761-11W
AirEngine 5762-15HW
AirEngine 5762-13W
AirEngine 5762-12SW

Huawei AirEngine 5761-11 Product Applications
