Description

Huawei AirEngine 5761R-11 is a Wi-Fi 6 (802.11ax) outdoor Access Points designed for high-density scenarios like stadiums, public squares, pedestrian streets, and amusement parks, etc.

Huawei AirEngine 5761R-11 Product Overivew

Huawei AirEngine 5761R-11 is a Wi-Fi 6 (802.11ax) outdoor access points. The product provides services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, delivering a device rate of up to 1.775Gbit/s. In addition, it provides services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands or 5 GHz (2×2 MIMO) +5 GHz (2×2 MIMO) frequency bands, achieving a maximum rate of 2.4 Gbit/s. AirEngine 5761R-11 features with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong urge protection capability. AirEngine 5761R-11 provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers’ investment. These strengths make this access point ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

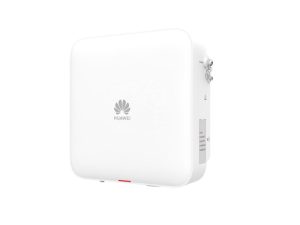

Huawei AirEngine 5761R-11 Product Pictures

Huawei AirEngine 5761R-11 ycictHuawei AirEngine 5761R-11

Huawei AirEngine 5761R-11 Product PicturesHuawei AirEngine 5761R-11 Product Pictures

Huawei AirEngine 5761R-11 Product Specifications

Brand Huawei
Parameters AirEngine 5761R-11
Maximum Number of Users 1024
Operating Temperature  –40°C to +65°C
Dimensions (H x W x D) 70 x 200 x 200 mm
Power Input PoE power supply: In compliance with 802.3at/af.
Note: When 802.3af power is supplied, the AP will operate with restrictions
For details, please refer to the Specification Query Tool
Maximum Power Consumption AirEngine 5761R-11: 17.7W
Note: The actual maximum power consumption depends on local laws and regulations.
Antenna Type AirEngine 5761R-11: Built-in Smart Antennas
MIMO: Spatial Streams AirEngine 5761R-11: 2.4 GHz: 2 x 2:2, 5 GHz: 2 x 2:2
Radio Protocols 802.11a/b/g/n/ac/ac wave2/ax
Maximum Rate AirEngine 5761R-11: 1.775 Gbit/s

Huawei AirEngine 5761R-11 Product Features

  • 1 x GE electrical, 1 x GE SFP
  • Support the Fat, Fit, and cloud three working modes
  • Provide built-in directional antennas and works simultaneously on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, achieving rates of up to 0.575 Gbit/s and 1.2 Gbit/s, respectively, and a maximum rate of 1.775 Gbit/s for the device.
  • Dual-5G mode: 5 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO), each with a rate of up to 1.2 Gbit/s at 5 GHz, providing a maximum rate of 2.4 Gbit/s for the device
  • Support Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Bluetooth terminals by collaborating with location server
