HG6143D FTTH is Optical Terminal Unit with 4 GE Port+1 POTS Port+WiFi 2.4GHz(11n2*2)&5GHz(11ac2*2)

HG6143D FTTH Product Overview

HG6143D FTTH is an FTTH-type GPON optical network terminal. It provides users with communication and entertainment services in the form of data, voice, video and so on, to meet the integrated access demand of families and small-scaled enterprise. This model supports configuring the user-defined upgrade policies through the network management system so that the equipment can be upgraded automatically after being powered on and also collecting performance data of the ONT remotely via the network management system to enable real-time monitoring of the network performance.

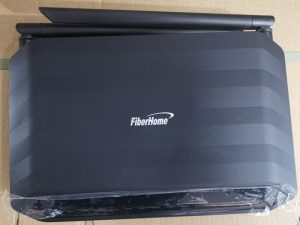

HG6143D FTTH Product Pictures

Fiberhome HG6143D FTTHFiberhome HG6143D FTTH

Fiberhome HG6143D FTTHFiberhome HG6143D FTTH

HG6143D FTTH Product Specifications

Type HG6143D
Dimension H/W/D(mm) 36.8*204*149
NNI Gpon
WiFi 2.4GHz(11n2*2) 5GHz(11ac2*2)
Power Supply AC:220V DC:12V/1.5A
Power Consumption ≤17W
Operating Temperature -5°C~45°C
Power DC 12V 1.5A
Power consumption <10W
Firmware English

HG6143D FTTH Product Features

  • GPON Access Capability

Conform to ITU-T G.984 series of standards, with good interoperability.

Provide large-capacity GPON transmission bandwidth: supports the downlink rate up to 2.5 Gbit/s and the uplink rate up to 1.25 Gbit/s.

Support the dynamic bandwidth allocation (DBA) algorithm.

Support long-haul transmission. The maximum transmission distance can reach 20 km.

  • Abundant Service Types

Provide abundant physical interfaces on the subscriber side to access multiple

services such as Internet access, video, voice and home storage services.

  • Wi-Fi Wireless Access

Provide Wi-Fi wireless access based on IEEE 802.11 a/b/g/n/ac to help you set up a safe and reliable wireless network.

Compatible with IEEE 802.11 a/b/g/n/ac and authenticated by Wi-Fi Alliance, with good compatibility with other WLAN devices.

Supports eight SSIDs (four for the 2.4 GHz band and another four for the 5 GHz band) so that users can set different wireless networks as needed.

Supports multiple authentication and encryption modes to provide users with safe and reliable wireless access approaches.

  • Network Storage and File Sharing

Provide a USB interface for connection with the USB interface storage device to provide convenient network storage and file sharing service.

Support plug-and-play and hot insertion of the USB interface

HG6143D FTTH and More Related Models

HG6543C  GPON 2*GE+2*FE+1*POTS+WiFi 2.4GHz(11n2*2)

HG6243C  GPON 4*GE+2*POTS+WiFi 2.4GHz(11n2*2)

HG6245D  GPON 4*GE+2*POTS+WiFi 2.4GHz(11n2*2) 5GHz(11ac2*2)

HG6145D  GPON 4*GE+1*POTS+WiFi 2.4GHz(11n2*2) 5GHz(11ac2*2)

HG6143D  GPON 4*GE+1*POTS+WiFi 2.4GHz(11n2*2) 5GHz(11ac2*2)

HG6245P  GPON 4*GE+2*POTS+WiFi 2.4GHz(11n2*2) 5GHz(11ac3*3)

HG6244C  GPON 4*GE+2*POTS+1*CATV+WiFi(2.4GHz 11n2*2)

HG6544C  GPON 2*GE+2*FE+1*POTS+1*CATV+WiFi(2.4GHz 11n2*2)


HG6143D FTTH Product Applications

Fiberhome HG6143D applications ycict
