Huawei CE8861-4C-EI Switch is 100G Ethernet switch designed for data centres and high-end campus networks. CE8800 switches can function as core or aggregation switches on data centre networks to help enterprises and carriers build a scalable data centre network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.

Huawei CE8861-4C-EI Switch Product Overview

Huawei CE8861-4C-EI Switch provides high-performance, high-density 100GE/40GE/25GE/10GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data centre service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE8800 switches can work with CE12800/ CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centres.

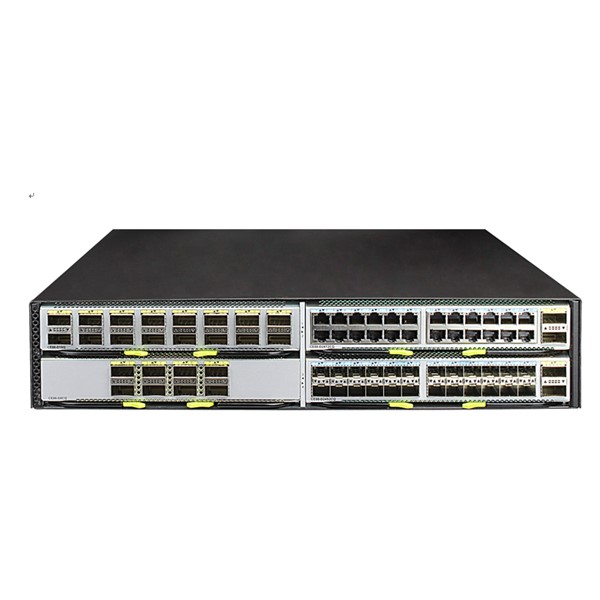

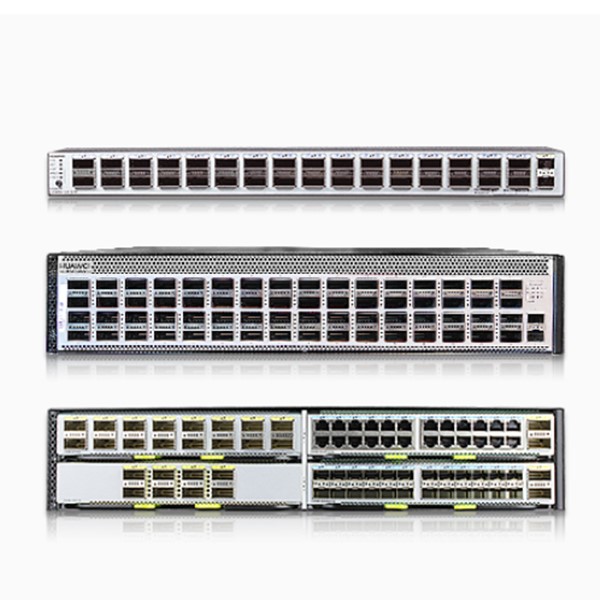

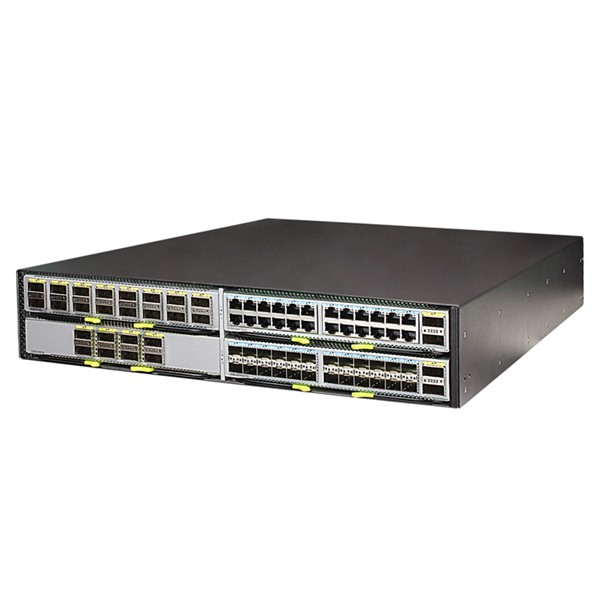

Huawei CE8861-4C-EI Switch Product Pictures

Huawei CloudEngine 8861-4C-EI Switch YCICTHuawei CloudEngine 8861-4C-EI Switch YCICT

Huawei CE8861-4C-EI Switch Specifications

Item CE8860-4C-EI CE8850-32CQ-EI CE8850-64CQ-EI CE8861-4C-EI
Maximum number of  MAC address entries 136K 136K 264K 288K
Maximum number of IPV4 192K IPV4 192K IPV4 360K IPV4 380K
Forwarding routes (FIB IPV6 128K IPV6 128K IPV6 256K IPV6 256K
IPv4/ IPv6) ARP table size 84K 84K 156K 168K
Maximum number of VRF 1024 1024 2048 4096
IPv6 ND (Neighbour 32K 32K 48K 64K
Discovery) table size
Maximum Number of multicast routes 8K 8K 8K 8K
(Multicast FIB IPv4/
Maximum VRRP groups 256 256 1000 1000
Maximum number of 128 128 128 128
ECMP paths
Maximum ACL number Ingress 2750 egress 1000 Ingress 2750 egress 1000 Ingress 2750 egress 1000 Ingress 7662 egress 2000
Maximum Number of broadcast domains 8K 8K 8K 16K
Maximum number of 4K 4K 4K 12K
Maximum number 2K 2K 2K 2K
of tunnel endpoints
Maximum number of lag group 1024/512/ 1024/512/ 1024/512/ 1024/512/
256/128/64 256/128/64 256/128/64 256/128/64
Maximum number of 2/4/8/16/32 2/4/8/16/32 2/4/8/16/32 2/4/8/16/32
links in a lag group
Maximum  number of 64 64 64 64
MSTP instance
VBST 500 500 500 500
(Maximum number of VLANs where VBST can be configured)
Dimensions (W 442*600*88.1 442*420*43.6 442*600*88.1 442*600*88.1
× D ×H ,mm)

Huawei CE8861-4C-EI Switch Features

  • Huawei CloudEngine 8861-4C-EI Switch supports 100GE/40GE/25GE/10GE flexible cards and provides flexible networking capabilities to build a non-blocking network platform with the CE12800/CE7800/CE6800/CE5800 series.
  • Virtualize multiple devices into one logical device to build a scalable, manageable data centre network platform;
  • The stacking system implements redundant backup of the control plane and data plane, avoiding the risk of a single point of failure and greatly enhancing the reliability of the system.
  • The service port is reused as a stack interface. It can not only stack the racks and spans but also support long-distance stacking across areas.
  • Configure service bandwidth and stack bandwidth flexibly according to the actual network size and configure network resources reasonably.

Huawei CE8861-4C-EI Switch Ordering Info

CE8860-4C-EI-F CE8860-4C-EI Mainframe(With 4 Sub card Slots,2*FAN Box, Port-side Exhaust, Without Power Module)
CE8860-4C-EI-B CE8860-4C-EI Mainframe(With 4 Sub card Slots,2*FAN Box, Port-side Intake, Without Power Module)
CE8860-4C-EI CE8860-4C-EI Mainframe(With 4 Sub card Slots, Without FAN Box, Without Power Module)
CE8850-EI-F-B0A CE8850-32CQ-EI Switch(32-Port 100GE QSFP28,2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Exhaust)
CE8850-EI-B-B0A CE8850-32CQ-EI Switch(32-Port 100GE QSFP28, 2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Intake)
CE8850-32CQ-EI CE8850-32CQ-EI Switch(32-Port 100GE QSFP28 Optical,2*FAN Box, Portside Exhaust, Without Power Module)
CE88-D8CQ CE8860:8 Port 100GE QSFP28 Interface Card
CE88-D16Q CE8860:16 Port 40GE QSFP+ Interface Card
CE88-D24T2CQ C E8860:24 Port 10GE Base-T and 2 Port 100GE QSFP28 Interface Card
CE88-D24S2CQ CE8860:24 Port 25GE SFP28 and 2 Port 100GE QSFP28 Interface Card

Huawei CE8861-4C-EI Switch Applications

Huawei CloudEngine 8861-4C-EI Switch YCICT

Huawei CloudEngine 8861-4C-EI Switch YCICT
