Description
Huawei EA5801E-GP16 is a small, low-density box-type OLT that supports FTTH network construction mode and provides users with a unified bearer platform for multiple services
Huawei EA5801E-GP16 Product Overview
Huawei EA5801E-GP16 is a box-shaped Optical Line Terminal (OLT) with Gigabit Passive Optical Network (GPON) access, supporting both Passive Optical LAN (POL) and Fiber To The Home (FTTH) solutions. It carries all services over a single fiber network, considerably simplifying network architecture as well as reducing Operating Expense (OPEX).
The device is applicable to Access Point (AP) convergence on a small scale. As such, OptiXaccess EA5801E-GP16 is well-suited to lightweight deployment in enterprises, with a single OLT meeting the service-bearing requirements for the entire campus.
Huawei EA5801E-GP16 is flexible adaptation to various scenarios This product is a box-type OLT product that occupies 1U installation space, and is suitable for small-scale access point aggregation scenarios. It is suitable for enterprise-level lightweight deployment, and one OLT device meets the business carrying requirements of a single enterprise or a campus.
EA5801 series has three models: EA5801-GP08 , EA5801-CG04 and EA5801E-GP16

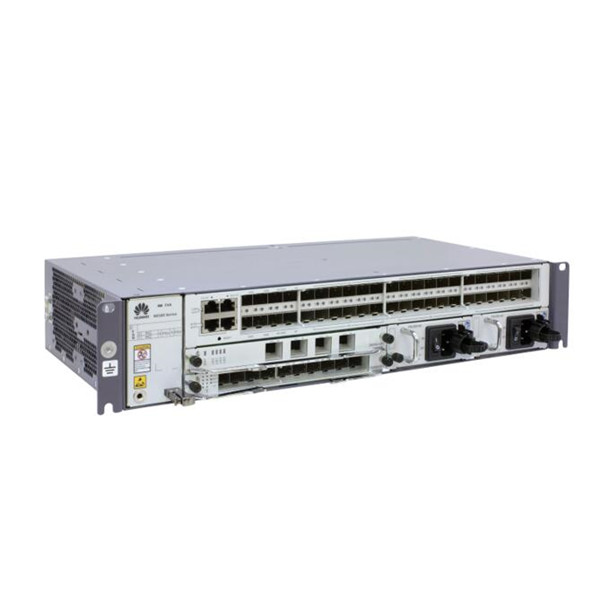

Huawei EA5801E-GP16 Product Pictures
Huawei EA5801E-GP16 Product Specifications
| Parameters | Huawei OptiXaccess EA5801E-GP16 |
| Dimensions (H x W x D) | Excluding mounting ears: 43.6 x 442 x 220 mm |
| Including IEC mounting ears: 43.6 x 482.6 x 220 mm | |
| Including ETSI mounting ears: 43.6 x 535 x 220 mm | |
| Maximum Fully-Loaded Weight (DC) | 4.2 kg |
| Maximum Fully-Loaded Weight (AC) | 4.6 kg |
| Power Supply Mode | DC power supply (dual backup) |
| AC power supply (dual backup) | |
| Working Voltage Range | DC power supply: –38.4 V to –72 V |
| AC power supply: 100–240 V | |
| Rated Voltage | DC power supply: –48/–60 V |
| AC power supply | |
| Maximum Input Current | DC power supply: 6 A |
| AC power supply: 2.5 A | |
| Ambient Humidity | 5–95% RH |
| Atmospheric Pressure | 70–106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of the device. Therefore, the working environment temperature of the device varies with the altitude. |
| System Switching Capacity | 140 Gbit/s |
| MAC Addresses | 32,768 |
| Access ONT | 1024 |
| IPv4 Routing Table | 8192 |
| IPv6 Routing Table | 4096 |
| ARP Table | 16,384 |
| Bit Error Rate (BER) in Full Load | A BER smaller than 10 e-7 for a port that transmits data in full load. |
| 10 GE/GE Upstream Ports | 4 |
| Service Ports | 16 GPON |
| Ambient Temperature | –40°C to +65°C |
| The device can start up at temperatures as low as –25°C. | |
| Note: | |
| 65°C refers to the highest temperature measured at the air intake vent of a service subrack. |
Huawei EA5801E-GP16 Product Features
- Adaptable to Diverse Scenarios
Requires only 1U installation space for small-scale AP convergence, meeting service-bearing requirements for an enterprise or campus with just a single OLT.
- Flexible Installation
Rapid Deployment and Installation Suitable for installation in both indoor and outdoor cabinets, the OLT can withstand high temperatures, saving both manpower and cabinet space.
Huawei EA5801E-GP16 Product and More Models
Huawei EA5801E-GP16 Product Applications
