Huawei SmartAX EA5801 CG04

Description

Huawei SmartAX EA5801 GP04 is a compact and low-density box-shaped OLT. This model offers GPON or XG-PON&GPON combo access and supports passive optical LAN (POL) and fibre to the home (FTTH) solutions.

Huawei SmartAX EA5801 CG04 Product Overview

Huawei SmartAX EA5801 GP04 is a small volume, low-density box OLT and provides GPON or XG-PON combo access. Huawei SmartAX EA5801 GP04 supports POL and FTTH network construction mode with broadband, voice, video, monitoring and other services. Therefore simplifying Network Architecture and Reduce OPEX Huawei SmartAX EA5801 GP04 has built-in main control business module and is equipped with one pluggable fan module and one to two pluggable AC or DC power modules.

EA5801 series has three models: EA5801-GP08 , EA5801-CG04 and EA5801E-GP16

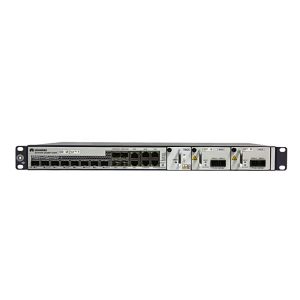

Huawei SmartAX EA5801 CG04 Product Picture

Huawei SmartAX EA5801 CG04 YCICTHuawei SmartAX EA5801 CG04 YCICT

Huawei SmartAX EA5801 CG04 ycictHuawei SmartAX EA5801 CG04 ycict

Huawei SmartAX EA5801 CG04 Product Specifications

Model SmartAX EA5801-CG04
Dimensions (H x W x D) Without mounting ears: 43.6 mm x 442 mm x 222.3 mm
With IEC-standard mounting ears: 43.6 mm x 482.6 mm x 222.3 mm
With ETSI-standard mounting ears: 43.6 mm x 535 mm x 222.3 mm
Power Supply Mode DC power supply (dual for backup)
AC power supply (dual for backup)
Working Voltage Range DC power supply: -38.4V to -72V
AC power supply: 100V to 240V
Rated Voltage DC power supply: -48V/-60V
AC power supply: 110V/220V
Maximum Input Current DC power supply: 6A
AC power supply: 2.5A
Ambient Temperature -40°C to +65°C* (normal operation), Minimum startup temperature: -25°C
*+65°C indicates the temperature of the air intake vent of the service subrack
Ambient Humidity 5% RH to 95% RH
Atmospheric Pressure 70 kPa to 106 kPa
MAC Addresses 32,768
ARP Table 16,384
GE Upstream Ports 2 optical/electrical combo ports
10 GE/GE Upstream Ports 2
Number of Service Ports 4 x G-PON and GPON combo

Huawei SmartAX EA5801 CG04 Product Features

  • Huawei SmartAX EA5801 CG04 provides XG-PON&GPON combo access, and it provides a unified carrying platform for multiple services, including broadband, voice, video, and monitoring.
  • Huawei SmartAX EA5801 CG04 supports the PON combo technology and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON.
  • Huawei SmartAX EA5801 CG04 supports POL and FTTH network construction modes. It carries all services over one fibre network, simplifying network architecture and reducing OPEX.
  • Huawei SmartAX EA5801 CG04 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, conserving manpower and cabinet space.

Huawei SmartAX EA5801 CG04 and Huawei SmartAX EA5801 CG08

Huawei SmartAX EA5801 GP08 and GP04

Huawei SmartAX EA5801 CG04 Application

Huawei SmartAX EA5801 CG04 YCICT
