Description

Huawei OSXD22N00 SFP+ is Optical module-SFP+-10G-multimode module (1310nm, 0.22km, LC, LRM)

Huawei OSXD22N00 SFP+ Product Overview

Optical module-SFP+-10G-multimode module (1310nm, 0.22km, LC, LRM). SFP+ is a major standard protocol for 10G pluggable optical modules. Typical wavelengths are 850 nanometers, 1310 nanometers, and 1550 nanometers. They also support CWDM and DWDM wavelength division multiplexing wavelengths. They are mainly used in 10G SDH optical transmission network, 10G fiber channel, 10G Ethernet and other fields. SFP+ has a digital diagnostic function similar to SFF-8472, and is more powerful, which can support more management tools to realize the function of the module. SFP+’s multi-source agreement (MSA) directly uses the SFP interface specification to define the circuit interface, which fully meets the requirements of the SDH optical transmission network OC-192 / STM-64 for the rate of 9953.28 Mbit/s.

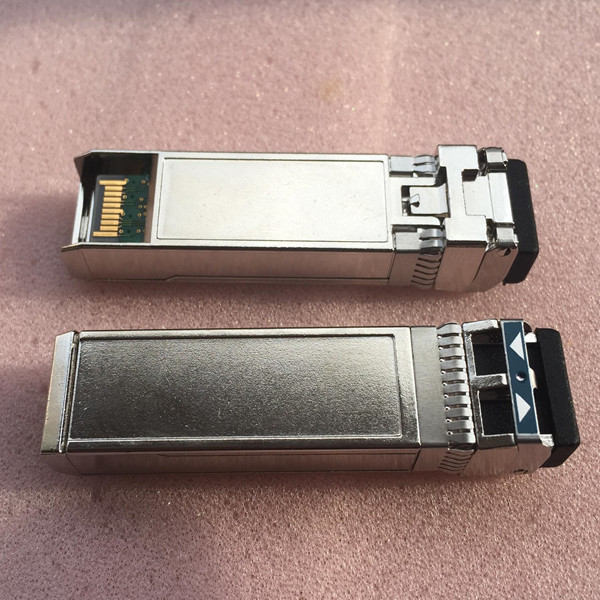

Huawei OSXD22N00 SFP+ Product Pictures

Huawei OSXD22N00 SFP+ YCICT Huawei OSXD22N00 SFP+ PRICE AND SPECS NEW AND ORIGINAL FOR HUAWEI SWITCHHuawei OSXD22N00 SFP+ YCICT Huawei OSXD22N00 SFP+ PRICE AND SPECS NEW AND ORIGINAL 10G MULTI MODE

Huawei OSXD22N00 SFP+ YCICT Huawei OSXD22N00 SFP+ PRICE AND SPECS NEW AND ORIGINAL FOR SWITCH 10G Huawei OSXD22N00 SFP+ YCICT Huawei OSXD22N00 SFP+ PRICE AND SPECS NEW AND ORIGINL 10G SFP +

Huawei OSXD22N00 SFP+ Product Specifications

Item Description
Brand Huawei
Model OSXD22N00
Part number 02310CRM
Transceiver form factor SFP+
Transmission speed 10GE
Center wavelength (nm) 1310
Standards compliance 10GBASE-LRM
Connector type LC
Applicable cable and maximum transmission distance Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
Multimode fiber (OM1, OM2, OM3): 0.22 km
Transmit power (dBm) -6.5 to +0.5
Maximum receiver sensitivity (dBm) -6.5
Overload power (dBm) 1.5
Extinction ratio (dB) 3.5
Operating temperature 0°C to 70°C (32°F to 158°F)

Huawei OSXD22N00 SFP+ Product Features

  • Module type SFP
  • Transmission distance 220 meters
  • Transmission wavelength 1310nm
  • Interface type Double LC interface
  • Transmission rate 10.3Gb/s
  • Working voltage 3.3V
  • Digital diagnosis with DDM
  • Maximum transmission rate 10.3Gbps
  • 1310nm FP-LD laser
  • Typical transmission distance 220 meters (1310nm FP-LD fiber)
  • 3V single voltage, TTL logic interface
  • Dual LC interface, support hot swap
  • Comply with MSA SFP+ protocol SFF-8431 specification
  • Compliant with IEEE 802.3ae 10GBASE-LRM standard
  • Working environment temperature: 0℃ to +70℃

Huawei OSXD22N00 SFP+ Product and More SFP Unit

SFP-FE-SX-MM1310 Optical module-SFP-100M/155M-multimode module (1310nm, 2km, LC)
eSFP-FE-LX-SM1310 Optical Module-eSFP-100M/155M-Single Mode Module (1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310 Optical Module-eSFP-FE-Single Mode Module (1310nm, 40km, LC)
S-SFP-FE-LH80-SM1550 Optical Module-eSFP-FE-Single Mode Module (1550nm, 80km, LC)
SFP-1000BaseT Electrical module-SFP-GE-electrical interface module (100m, RJ45)
eSFP-GE-SX-MM850 Optical Module-eSFP-GE-Multimode Module (850nm, 0.5km, LC)
SFP-GE-LX-SM1310 Optical Module-eSFP-GE-Single Mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310 Optical Module-eSFP-GE-Single Mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550 Optical Module-eSFP-GE-Single Mode Module (1550nm, 40km, LC)
S-SFP-GE-LH80-SM1550 Optical Module-eSFP-GE-Single Mode Module (1550nm, 80km, LC)
eSFP-GE-ZX100-SM1550 Optical Module-eSFP-GE-Single Mode Module (1550nm, 100km, LC)
XFP-SX-MM850 Optical module-XFP-10G-multimode module (850nm, 0.3km, LC)
XFP-STM64-LX-SM1310 Optical Module-XFP-10G-Single Mode Module (1310nm, 10km, LC)
XFP-STM64-LH40-SM1550 Optical Module-XFP-10G-Single Mode Module (1550nm, 40km, LC)
XFP-STM64-SM1550-80km Optical Module-XFP-10G-Single Mode Module (1550nm, 80km, LC)
OMXD30000 Optical module-SFP+-10G-multimode module (850nm, 0.3km, LC)
OSXD22N00 Optical module-SFP+-10G-multimode module (1310nm, 0.22km, LC, LRM)
OSX010000 Optical Module-SFP+-10G-Single Mode Module (1310nm, 10km, LC)
OSX040N01 Optical Module-SFP+-10G-Single Mode Module (1550nm, 40km, LC)
SFP-GE-LX-SM1490-BIDI Optical module-eSFP-GE-BIDI single-mode module (TX1490/RX1310, 10km, LC)
SFP-GE-LX-SM1310-BIDI Optical module-eSFP-GE-BIDI single-mode module (TX1310/RX1490, 10km, LC)
SFP-FE-LX-SM1310-BIDI Optical module-eSFP-FE-BIDI single-mode module (TX1310/RX1550, 15km, LC)
SFP-FE-LX-SM1550-BIDI Optical module-eSFP-FE-BIDI single-mode module (TX1550/RX1310, 15km, LC)

Huawei OSXD22N00 SFP+ Product Applications
