Huawei SMU11C Module is a monitoring unit for site and power for ETP4860

Huawei SMU11C Module Product Overview

Huawei SMU11C Module supports the monitoring management of HUAWEI embedded power systems. And can monitor and manage telecom power system, and provides site monitoring function. LCD screen and keyboard are equipped in the unit to realize man-machine interaction. It has a serial communication port to realize local and remote monitoring. It has sensor ports to monitor the ambient condition

Another monitor modules is SMU11B supporting WebUI and SNMP, also selected languages

SMU11C is applied to Huawei 60A ETP4860-B1A2.ETP4860-B1A2 is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management, remote management, wide range of AC/DC input voltage, etc. The system can configure 1U 30A high rectifier module, and provides 4kW output. ETP4860-B1A2 canbe embedded in 19-inch rack or cabinet.

Huawei SMU11C Module Product Pictures

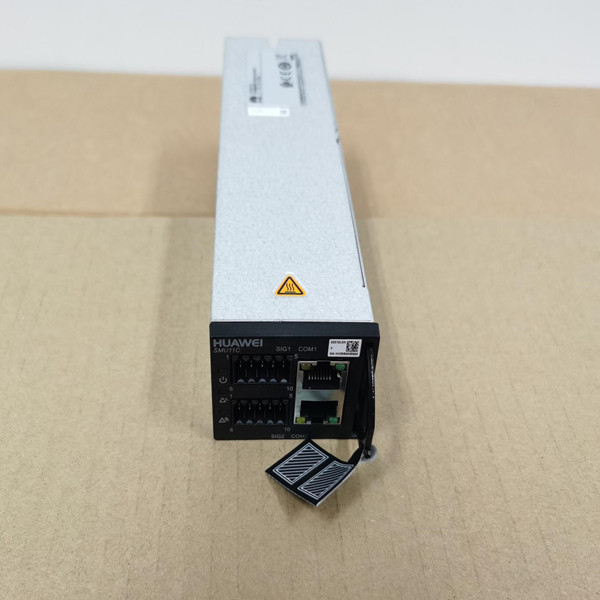

Huawei SMU11C Module power monitor module ycictHuawei SMU11C Module power monitor module ycict new and original


Huawei SMU11C Module Product Specifications

Item Descriptions
Brand Huawei
Model SMU01C
Power rating -48V; 0.6A Max
Net Dimension(D*W*H mm) 193*51*40
Product Line Network Energy
Detection AC input voltage
DC output voltage
Load current
Battery current
Battery temperatures
Ambient temperatures
Batterymanagement Battery boost charge
Battery floating charge
Battery tests
Battery current limiting
Battery temperature compensation
Battery overtemperature protection
Battery low voltage disconnection(BLVD) protection
Battery imbalance detection
Battery capacity detection
Energy savingmanagement Intelligent rectifier module hibernation
Rectifiermanagement Rectifier operating information
Rectifier power-on/off control
Rectifier output voltage limiting
Rectifier output current limiting

Huawei SMU11C Module Product Features

  • Support hot plug
  • Provide 4 dry contact outputs
  • Provide 2 Boolean value inputs
  • Support English and Chinese as displayed language
  • Provide ports battery temperature sensor, ambient temperature sensor
  • Perform comprehensive power management and intelligent battery management

Huawei SMU11C Module Product Applications

Huawei SMU11C Module
