Description

Cisco Aironet 1815i Access Point delivers industry-leading wireless performance, supporting the latest Wi-Fi standards, IEEE new 802.11ac

The Wave 2 specification addresses the growing needs of wireless networks by providing a better user experience.

The 1815i Series expands its support to support next-generation Wi-Fi clients, such as integrated 802.11ac Wave 1 or Wave 2 support

they can also be used in mobile phones, tablets and high-performance laptops.

Cisco Aironet 1815i Access Point has 2 different mdoels

  AIR-AP1815i-x-K9: Dual-band, controller-based 802.11a/g/n/ac, Wave 2

  AIR-AP1815i-x-K9C: Dual-band 802.11a/g/n/ac Wave 2 with default software Mobility Express

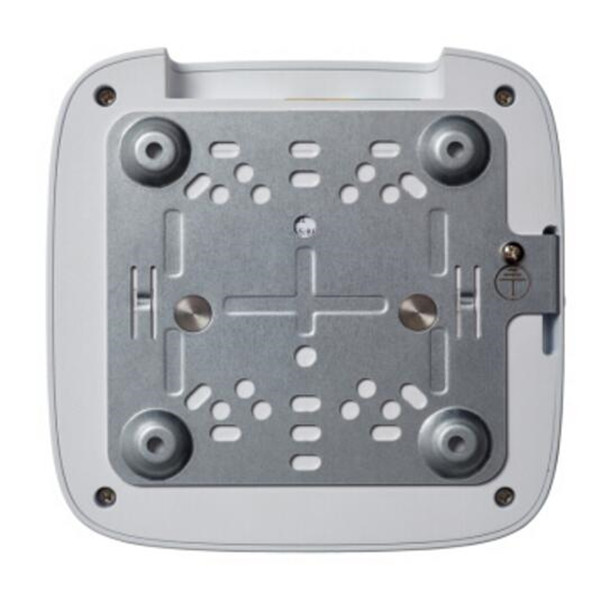

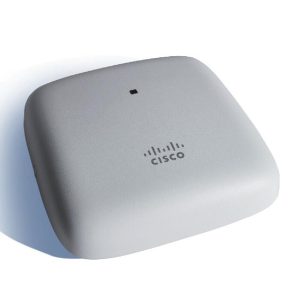

Cisco Aironet 1815i Access Point Product Picture

Cisco Aironet 1815i Access PointCisco Aironet 1815i Access Point

Cisco Aironet 1815i Access Point Datasheet

tem Specification
Authentication and security Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
802.1X, RADIUS authentication, authorization, and accounting (AAA)
802.11r
802.11i
Software Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Cisco Mobility Express
Supported WLAN Controllers   Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers,
  Cisco Mobility Express
Maximum clients Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac 2×2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
 802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support
Ethernet ports  Authentication with 802.1X or MAC filtered
Dynamic VLAN or per port
Traffic locally switched or tunneled back to wireless LAN controller

Cisco Aironet 1815i Access Point Features

1, With the 802.11ac Wave 2, the 1815i Series delivers data rates as fast as 867 Mbps in the 5 GHz band, compared to current high-end

The 802.11n access point has a faster data rate. This product also offers total dual-band wireless data rates up to 1 Gbps for businesses and services

The provider network is ahead of the curve to meet the expectations and needs of wireless users for performance and bandwidth.

2, Wireless access is increasingly favored by enterprise users due to its ease of use, making it the preferred method of network connectivity. Accompanied by this shift

The user’s expectation of wireless access is that the user’s daily work efficiency should not be reduced, and the user’s high-performance experience should be guaranteed.

3, Free mobility. The industry-leading performance of the 1815 Series not only enables highly secure and reliable wireless connectivity but also provides stability

The mobile terminal user experience.
