Huawei QSFP28-100G-10KM Module is 100G 1310nm 10km QSFP28 optical transceiver with LC connector applied for huawei series switches
Huawei QSFP28-100G-10KM Module Product Overview
Huawei QSFP28-100G-10KM Module supports link lengths of up to 10km over a standard pair of G.652 single-mode fiber with duplex LC connectors. It complies with the IEEE 100GBASE-LR4 specification. It is designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

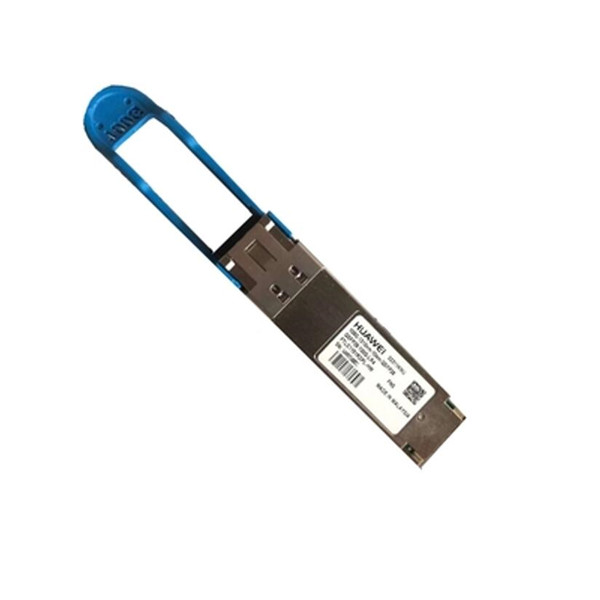

Huawei QSFP28-100G-10KM Module Product Pictures
Huawei QSFP28-100G-10KM Module Product Specifications
Item | Descriptions |
Module name | QSFP28-100G-10KM |
Part Number | 02311SYT |
Model | QSFP28-100G-10KM |
Form factor | QSFP28 |
Application standard | 100GBASE-LR4 |
Connector type | LC |
Optical fiber type | SMF |
Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
Transmission rate [bit/s] | 100 Gbit/s |
Target transmission distance [km] | Single-mode fiber (G.652): 10 km |
Center wavelength [nm] | 1295 nm, 1300 nm, 1304 nm, 1309 nm |
Maximum Tx optical power [dBm] | 4.5 dBm |
Minimum Tx optical power [dBm] | -4.3 dBm |
Minimum extinction ratio [dB] | 4 dB |
Rx sensitivity [dBm] | -8.6 dBm |
Overload power [dBm] | 4.5 dBm |
Huawei QSFP28-100G-10KM Module Product Features
- Hot pluggable QSFP28 LC form factor.
- Compliant to IEEE 802.3ba 100GBASE
- Up to 10km reach for G.652 SMF.
- Single +3.3V power supply.
- Operating case temperature: 0~70℃.
- Transmitter: cooled 4x25Gb/s LAN WDM TOSA
- Receiver: 4x25Gb/s PIN ROSA.
- 4x28G Electrical Serial Interface (CEI-28G-VSR).
- Maximum power consumption 3.5W.
