GYXTC8S Figure 8 Cable is figure 8 structure cable suitable for installation in the aerial environment for long haul communications.

GYXTC8S Figure 8 Cable Product Overview

The Optical Cable is 900μm tightly wrapped outer sheath with a layer of armor tube longitudinally, and aramid material is added between the armor tube and the outer sheath to ensure the compactness and longitudinal water resistance of the optical cable, and the steel wire strand is integrated into a figure 8 The polyethylene sheath.

GYXTC8S features the centrally situated loose tube with good excess length and minimize the influence of lateral crush. The waterproof tape provides watertight property. Corrugated steel tape armor and the PE outer sheath of GYXTC8S fiber optic cable provide crush resistance and gunshot resistance. The cross-section shows figure 8. Stranded wires as self-supporting member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.

GYXTC8S Figure 8 Cable Product Pictures

GYXTC8S Cable Figure 8 Cable ycictGYXTC8S Cable price and specs Outdoor Optical Cable ycict

GYXTC8S Cable price and specs ycictGYXTC8S Cable Outdoor Optical Cable ycict

GYXTC8S Figure 8 Cable Product Specifications

G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm ≤1480nm
Cable Type Fiber Count Cable Diameter mm Cable Weight kg/km Supporting Wire Spec Connection Diameter Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100mm Bending Radius Static /Dynamic
GYXTC8S 2~12 7.65×14.5 118 Φ1.0mm*7 Height×Width 1000/2500 300/1000 80/160
               Stranded wires                3.0×2.5 mm
GYXTC8S 14~24 8.2×15.1 129 Φ1.0mm*7 Height×Width 600/1500 300/1000 90/180
               Stranded wires                3.0×2.5 mm

GYXTC8S Figure 8 Cable Product Features

  • Loose tube filling compound
  • 100% cable core filling
  • Steel tape moisture barrier
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • The following measures are taken to ensure the cable watertight
  • High tensile strength of stranded wires meeting the requirement of self-supporting

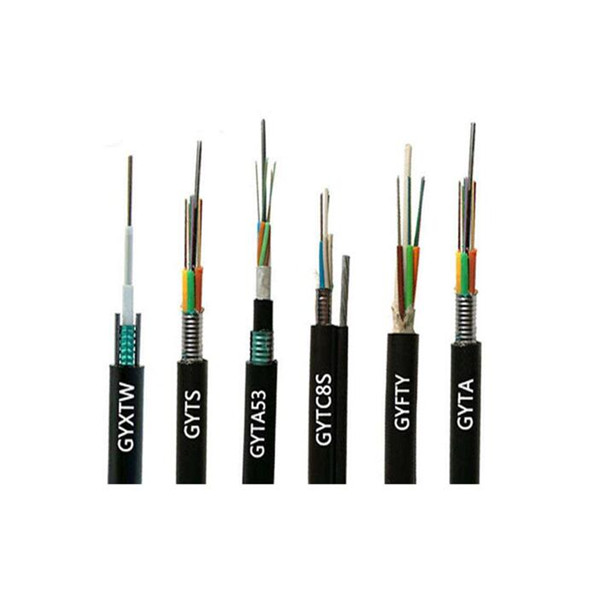

GYXTC8S Figure 8 Cable And More Optical Cables

Light-armored Cable(GYXTW)

Indoor/outdoor unitube non-metallic micro cable(JET)

Unitube Non-armored Cable(GYXY)

Unitube Non-metallic Non-armored Cable(GYFXY)

TWO FRP Aerial Fiber Optic Cable (GYFFY)

Stranded Loose Tube Non-armored Cable(GYTA)

Stranded Loose Tube Light-armored Cable(GYTS)

Stranded Loose Tube Armored Cable(GYTY53)

Stranded Loose Tube Armored Cable(GYTA53)

Non-metallic Strength Member Non-armored Cable(GYFTY)

Non-metallic Strength Member Non-armored Cable(GYFTA)

Non-metallic Strength Member armored Cable(GYFTY53)

Non-metallic Strength Member armored Cable(GYFTA53)

All Dielectric Self-supporting Aerial Cable(ADSS)

Figure 8 Cable(GYXTC8S)

Figure 8 Cable ( GYFTC8S)

Figure 8 Cable(GYTC8A)

Figure 8 Cable(GYTC8S)

All Dielectric Self-supporting Aerial Cable(ADSS)

GYXTC8S Figure 8 Cable Product Applications

GYXTC8S Cable specs fiber cable ycict
