Description
Huawei SFP EPON OLT PX20+ is 1.25G EPON OLT 1490/1310nm 20km ,SC for Huawei Epon service like 4ports: H801EPBA, H802EPBC 8ports: H802EPBD, H805EPBD, H806EPBD, H807EPBD, H808EPSD 16ports: H803EPFD
Huawei SFP EPON OLT PX20+ Product Overview
Huawei EPON OLT PX20+ SFP supports a data rate of typical 1.25 Gbps for GEPON OLT application up to 20km transmission distance, it’s designed meeting with Telecom EPON equipment technical requirement. The OLT product is positioned as an optical access device OLT, which supports GPON, 10G GPON, EPON, 10G EPON, and P2P access modes, and provides services such as Internet access, voice, and video. OLT products work with various types of ONU equipment to meet FTTH (Fiber To The Home), FTTB (Fiber To The Building), FTTC (Fiber To The Curb), FTTM (Fiber To The Move), FTTO (Fiber To The Office) Network applications.

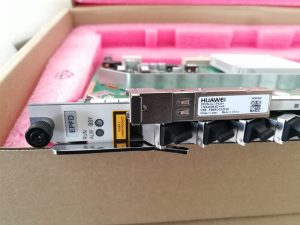

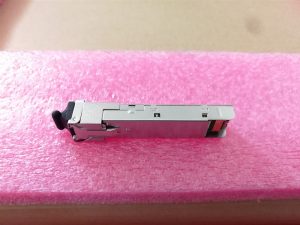

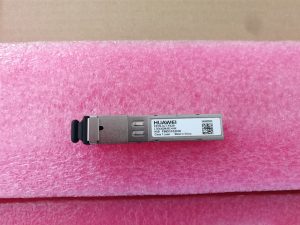

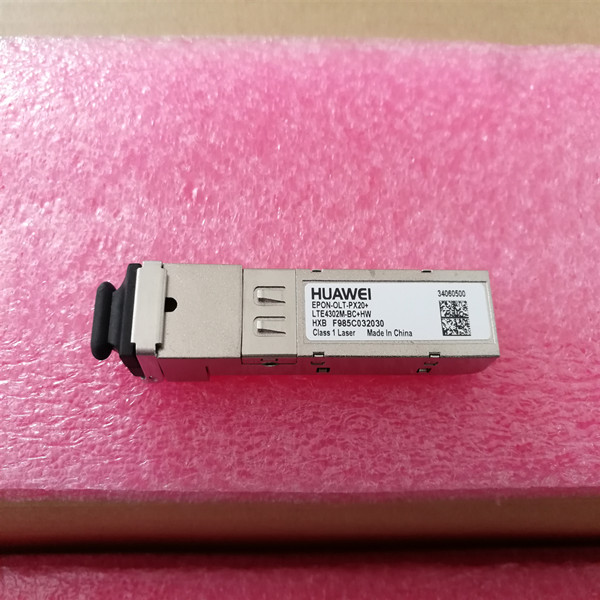

Huawei SFP EPON OLT PX20+ Product Pictures
Huawei SFP EPON OLT PX20+ Product Specifications
|
Brand |
Huawei |
| Model Number: |
EPON OLT PX20+ |
| Wavelength: |
1490TX/1310RX |
| Data transfer rate: |
1.25Gbps/1.25Gbps |
| Distance: |
20KM |
| Fiber Connector: |
SC |
| Power Supply | 3.3V |
| Operating Temperature | 0℃-70℃ |
| Model | PX20+,PX20++,PX20+++ |
| Transmission Distance | 10/20/30km |
Huawei SFP EPON OLT PX20+ Product Features
- Compatible IEEE 802.3ah 1000BASE-PX20 GEPON application
- Applied to EPON OLT for a Single Fiber Bi-directional EPON System
- SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
- Burst Digital Receiving Signal Strength Indication (RSSI)
- Single 3.3V power supply
- Operation case temperature 0~70°C
- RoHS-6 compliance
Huawei SFP EPON OLT PX20+ and More Products
| model | MA5680T MA5683T MA5608T |
| Uplink board | H801GICF H801GICG H801GICK |
| Module of uplink board | SFP, SFP(RJ-45), CSSFP, SFP+, XFP |
| Control board | SCUL SCUK/SCUN SCUN |
| EPON Service board | 4ports: H801EPBA, H802EPBC |
| 8ports: H802EPBD, H805EPBD, H806EPBD, H807EPBD, H808EPSD | |
| 16ports: H803EPFD | |
| Module of EPON service board | PX20 PX20+ PX20++ |
| GPON Service board | 4ports: H801GPBC |
| 8ports: H802GPBD, H805GPBD, H806GPBD, H807GPBD, H806GPBH, H807GPBH | |
| 16ports: H801GPFD , H802GPFD , H803GPFD, H805GPFD | |
| Module of GPON Service board | B+ Class c+ Class c++ |
| 10GE Uplink board | H801X1CA H801X2CA H801X2CS |
| 10GE EPON Service board | 8ports: H802 XEBD, H801XEBD |
| 10GE GPON Service board | 8ports: H801 XGBD |
Huawei SFP EPON OLT PX20+ Product Applications
